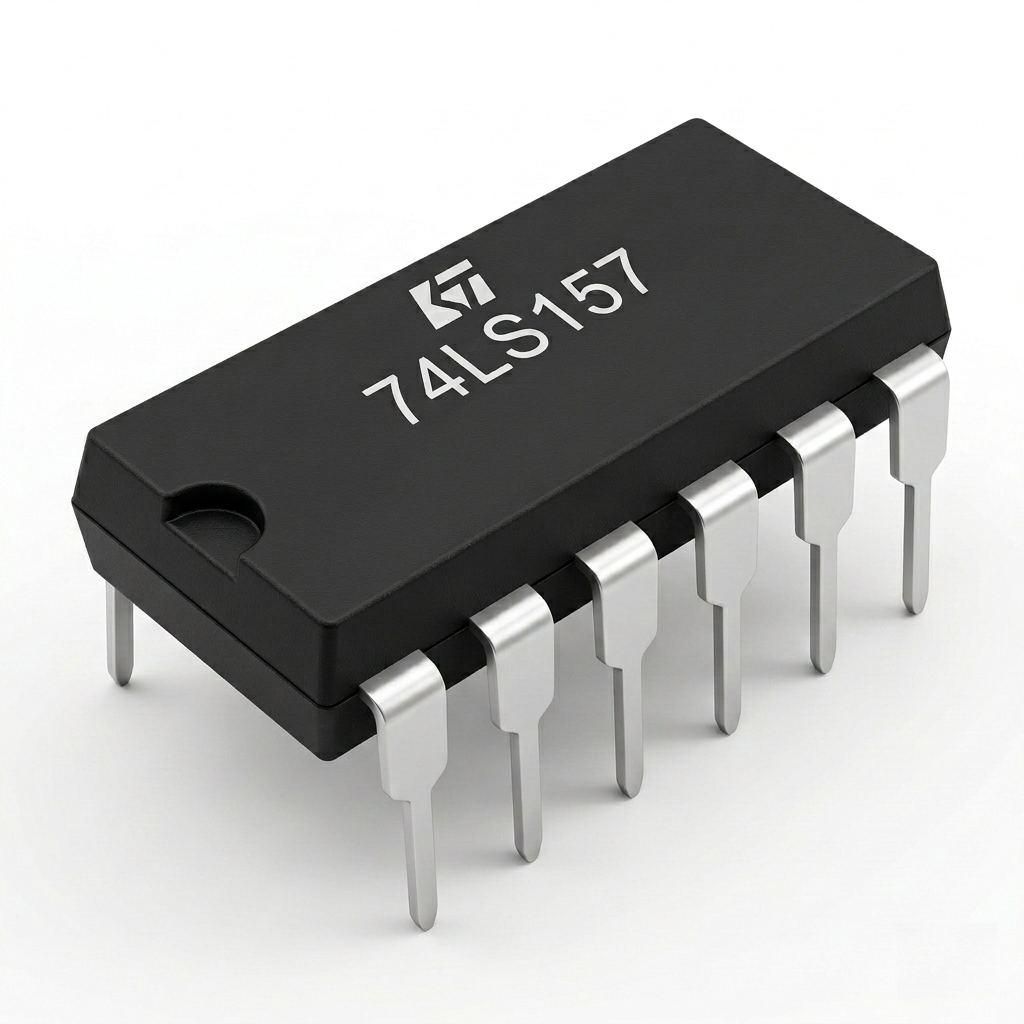

Genuine 74LS157 Quad Multiplexer – The Key to Retro Memory Addressing
Vital for Sinclair ZX Spectrum Repairs
In the world of Sinclair ZX Spectrum restoration, the 74LS157 is a “must-have” component. Usually found in positions such as IC3 and IC4, these multiplexers are responsible for switching the address bus between the processor and the ULA. When these chips fail, the computer often fails to boot or exhibits significant memory corruption. Replacing them with high-quality, modern 74LS157 chips is a standard procedure for bringing a non-working Spectrum back to life.
High-Performance TTL Logic
The 74LS157 contains four independent binary selectors. It features a common strobe input and a select input that determines which data source is routed to the outputs. Because this is the “LS” variant, it maintains compatibility with original vintage hardware timings, avoiding the signal “ringing” or timing issues sometimes caused by modern high-speed CMOS equivalents.
Key Technical Specifications:
- Logic Type: Quad 2-Line to 1-Line Multiplexer.
- Logic Family: 74LS (Low-power Schottky).
- Package Type: 16-pin DIL / DIP (Dual In-Line).
- Operating Voltage: Standard 5V TTL.
- Outputs: Non-inverting.
Common Applications:
- Sinclair ZX Spectrum: Address multiplexing for the 16k/48k RAM banks.
- Commodore 64: Frequently used in the memory control and data switching circuits.
- Arcade PCB Repair: Used extensively for signal steering in classic game boards.
DIY Electronics: Ideal for selecting between two sets of 4-bit data in breadboard projects.
