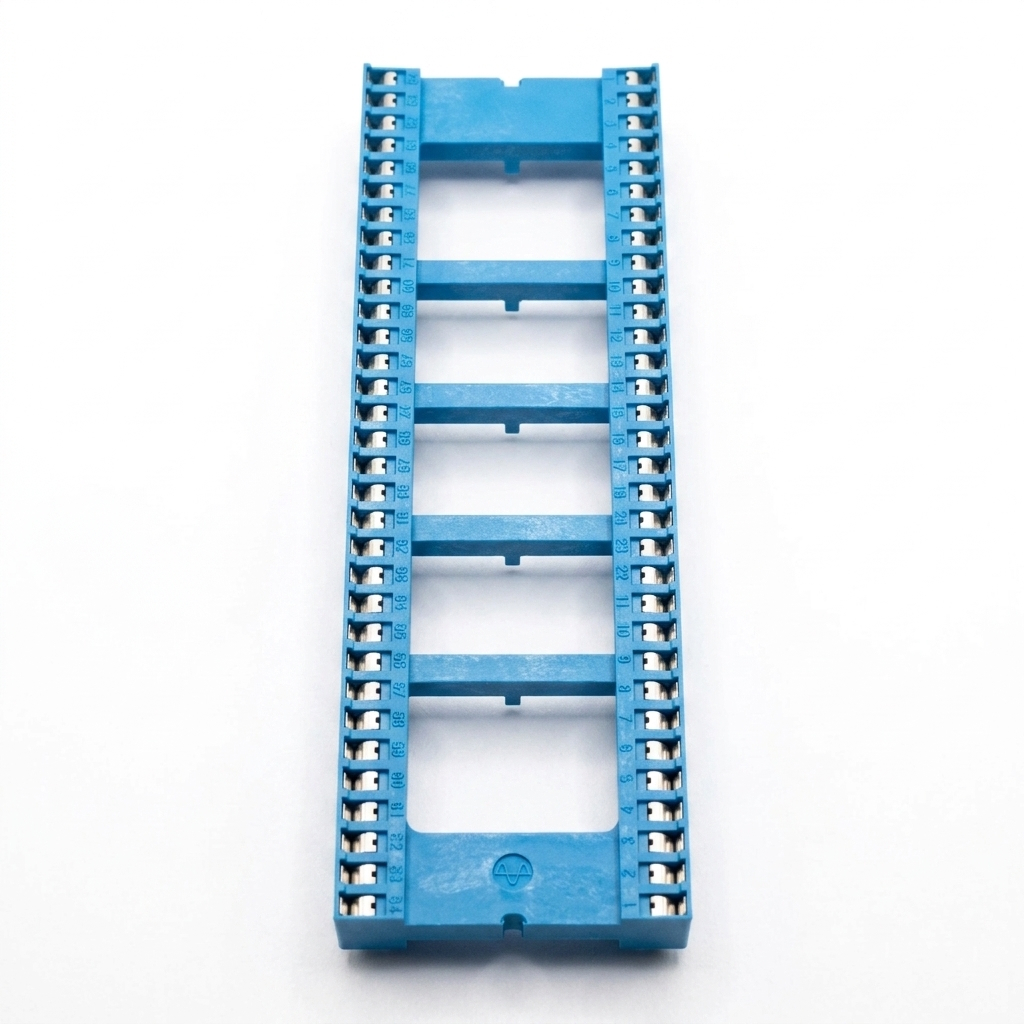

Professional Grade 64-Pin Dual-Wipe IC Socket – Blue Edition
When restoring a classic 16-bit computer, the CPU socket is often the source of intermittent “Guru Meditations” or system bombs. This blue 64-pin dual-wipe socket offers a high-reliability solution for the Motorola 68000 processor, ensuring your Amiga or Atari ST runs as smoothly as the day it left the factory.
Superior Reliability for 16-Bit Hardware
Large 64-pin integrated circuits require a significant amount of insertion force and consistent pin tension to function correctly. This socket is engineered to provide a secure, low-resistance home for your CPU.
Perfect for Amiga and Atari ST Motherboards
The 68000 CPU is the heart of the most iconic machines of the late 80s. This socket is a direct, high-quality replacement for:
- Commodore Amiga: A500, A500+, A1000, and A2000 models.
- Atari ST Range: 520ST, 1040ST, and Mega ST systems.
- Sega Megadrive/Genesis
- Special Projects: Ideal for users installing internal IDE interfaces or CPU relocators where a reliable, fresh socket is mandatory.
Why Choose Dual-Wipe Over “Pressed” Sockets?
Many budget sockets use a single “pressed” contact that only touches one side of the IC pin. Our dual-wipe design features two opposing spring-loaded contacts for every single pin.
Maximum Surface Area and Conductivity
By gripping both sides of the CPU pin, the dual-wipe action:
- Reduces Resistance: Provides a more stable electrical path for high-speed data signals.
- Resists Oxidation: The high-tension “wipe” action cleans the pin surface during insertion.
- Prevents Vibration Failures: Ensures the CPU remains seated even when the computer is moved or during expansion card installation.
Aesthetic and Functional Design
The striking blue colour not only looks great on a refurbished motherboard but also makes it easier to inspect the internal contacts for debris or alignment during the installation process.
Technical Specifications
- Pin Count: 64 Pins.
- Contact Type: Dual-Wipe (Two contact points per pin).
- Colour: High-visibility Blue.
- Pitch: Standard 2.54mm (0.1″).
- Format: DIL / DIP (Dual In-Line).
Width: 0.9-inch (22.86mm) Super-Wide profile.
Perfect Compatibility For:
- Commodore: Amiga 500, Amiga 500+, Amiga 2000, Amiga 600 (A600 with CPU relocators).
- Atari: 520ST, 1040ST, STFM, STE.
- Sega: Genesis / Megadrive (Model 1 & 2).
- Apple: Macintosh 128k, 512k, Plus.
- Sharp: X68000.
- Sinclair: QL.
- Philips: CD-i.
- Capcom: System I.
- Tandy: Model 16/16B/6000.
And many more.
