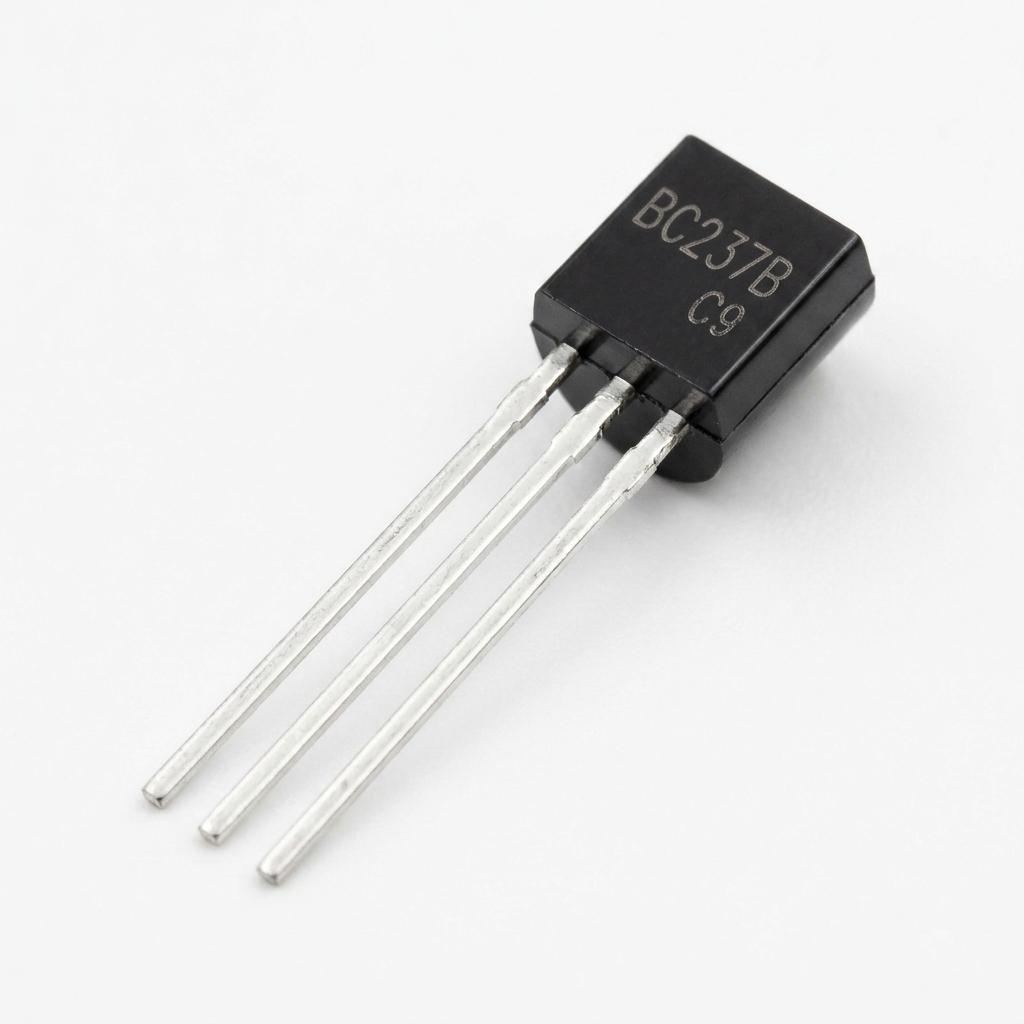

High-Quality BC237B Transistor – Essential for Sinclair ZX Spectrum Audio Repairs
The Modern Solution for TR8 and TR9 Positions
The Sinclair ZX Spectrum 16K and 48K rely on a specific chain of transistors to drive the internal speaker. While the original designs often utilised the BC184, these vintage parts can become noisy or fail entirely over four decades of use. The BC237B is the industry-standard modern replacement, offering superior thermal stability and matching gain characteristics to ensure your hardware remains authentic to its original specifications.
Compatibility and Use
This transistor is specifically intended for the TR8 and TR9 locations on Sinclair ZX Spectrum motherboards, particularly Issue 3, 3B, 4A, 4S, and Issue 6 revisions. It works in conjunction with the TR7 (ZTX450) to manage the audio output. If your machine is silent despite a known-working speaker, replacing these transistors is a standard troubleshooting step in the restoration process.
Key Technical Specifications:
- Type: NPN Silicon Epitaxial Planar Transistor.
- Package: TO-92 (Standard 3-pin layout).
- Direct Replacement: Modern equivalent for BC184 and BC184P.
- Target Positions: TR8 and TR9 (Audio/Speaker Circuit).
- Voltage/Current: Optimised for the low-power switching requirements of Sinclair logic boards.
Why Use Modern Components?
Using a modern BC237B ensures that your repair lasts for the long term. Unlike “New Old Stock” (NOS) parts that may have suffered from lead oxidation or age-related degradation, these are fresh, high-quality components manufactured to contemporary tolerances. They fit perfectly into the existing PCB footprints, making them ideal for hobbyists and professional restorers alike.
