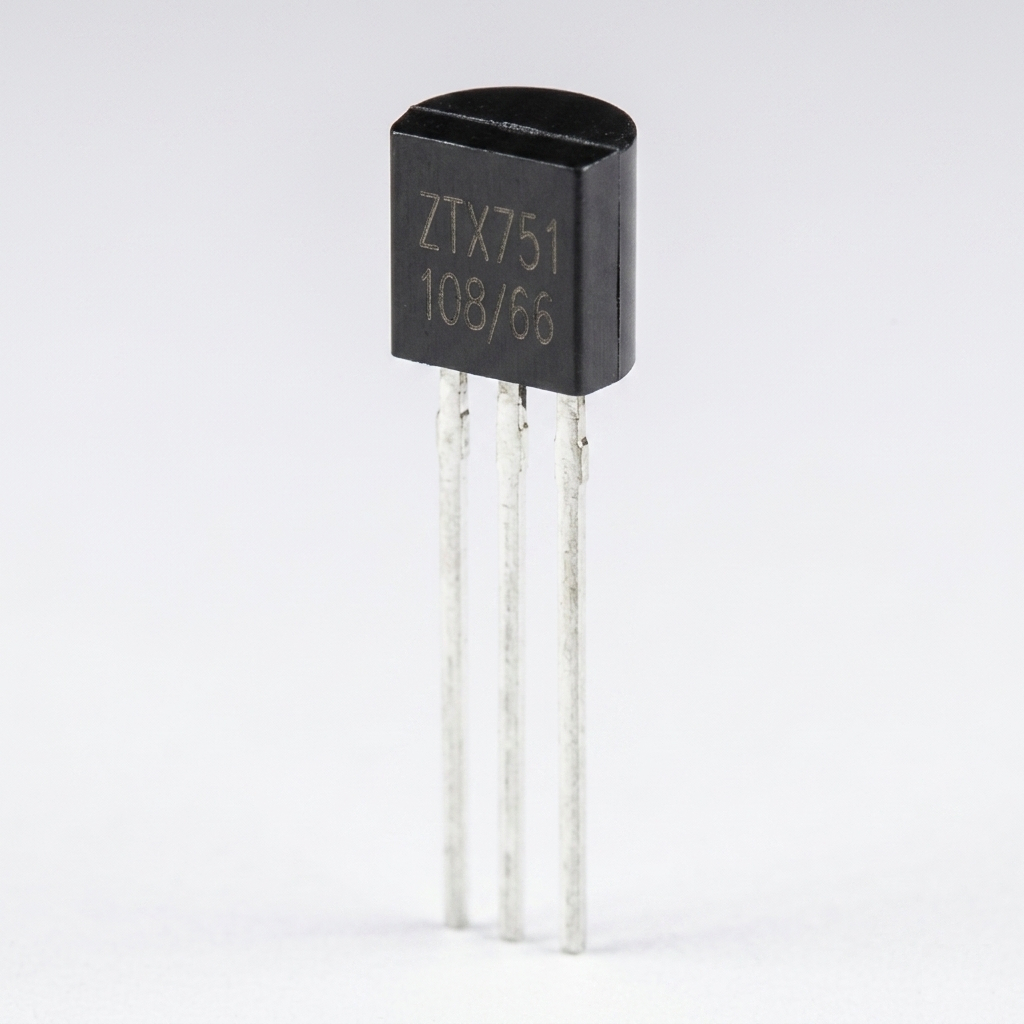

Reliable Power Restoration: ZTX751 PNP Transistor for Sinclair ZX Spectrum.
The Modern Solution for TR5 Failures
In the Sinclair ZX Spectrum 16k and 48k, the TR5 transistor works in tandem with TR4 to manage the DC-to-DC conversion required for the 12V and -5V power rails. Over time, the original ZTX213 components can fail due to heat stress or age, leading to a loss of video or a complete system failure. The ZTX751 is the definitive modern replacement, offering a more robust alternative to vintage parts.
Why Upgrade to the ZTX751?
While the original ZTX213 was sufficient in the 1980s, the ZTX751 provides better current handling and thermal stability. It is a direct fit for the E-line package footprint on your motherboard, making installation straightforward for anyone comfortable with a soldering iron.
Key Features:
- High Performance: PNP Silicon Planar Medium Power Transistor.
- Direct Compatibility: Ideal modern equivalent for the ZTX213 and ZTX212.
- Versatile Use: Primarily used in the TR5 position on Spectrum motherboards, but suitable for various vintage audio and computing applications.
- Reliability: Manufactured to modern standards to ensure a long lifespan for your restored hardware.
Repair Tip:
If you are replacing TR5, it is often wise to check the neighbouring TR4 (ZTX651 or ZTX450) and the nearby capacitors. Failure in one often puts stress on the other. Replacing these components together is a “best practice” for ensuring a stable power circuit.
