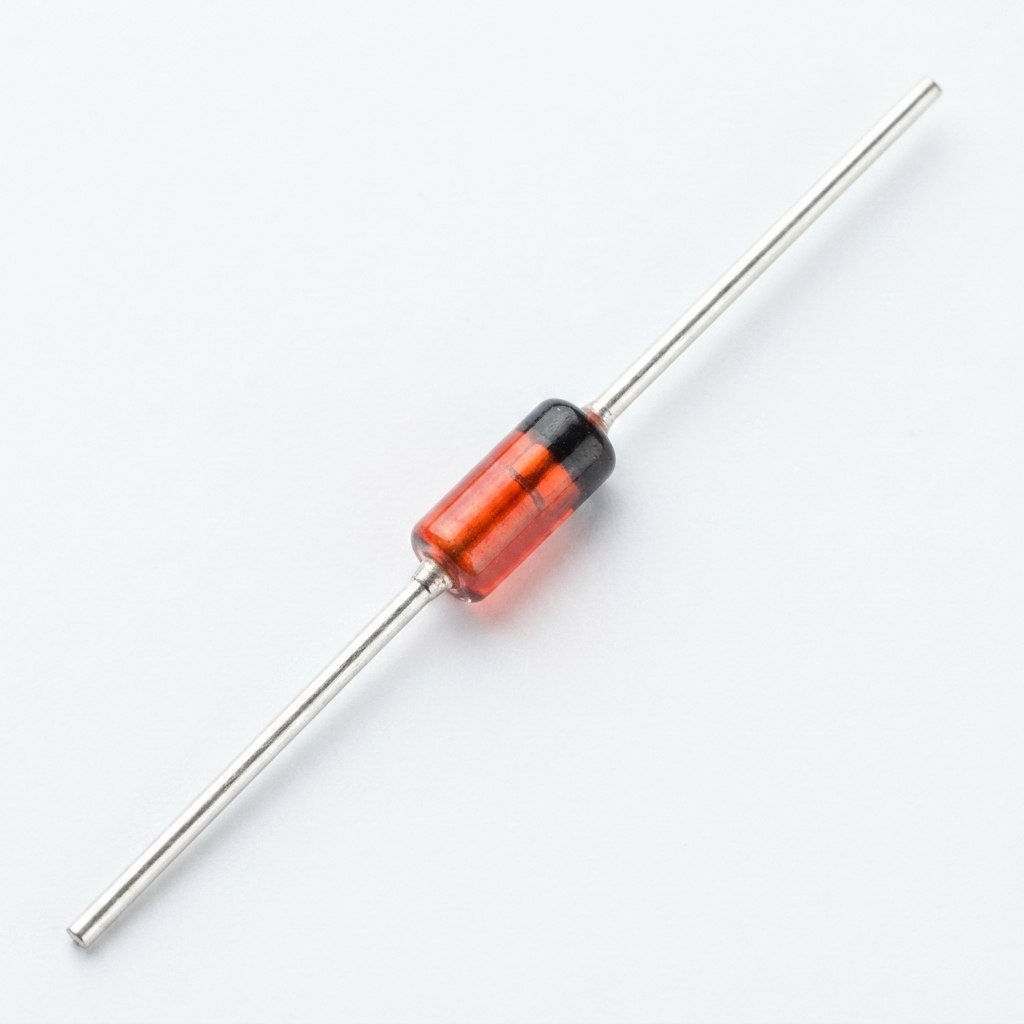

High-Quality 5V Zener Diode for Voltage Regulation
The 5V Zener diode is a fundamental component in power management, designed to allow current to flow backwards when a specific “Zener voltage” is reached. This makes it an indispensable tool for maintaining stable power rails in sensitive digital electronics.
Reliable Protection for Vintage Logic Circuits
In vintage 8-bit and 16-bit computers, 5V logic is the standard. However, original power supplies and internal DC-DC converters can drift over time. This Zener diode acts as a critical line of defence, clamping the voltage to a safe level and protecting irreplaceable chips like the ULA, Z80 CPU, and RAM from overvoltage damage.
Essential for Sinclair ZX Spectrum Power Repairs
On the Sinclair ZX Spectrum motherboard, Zener diodes (such as D19) play a pivotal role in the inverter circuit. A failed or leaky diode here often results in missing voltage rails or a complete failure to boot. Replacing ageing diodes with these high-quality modern equivalents is a standard step in any professional-grade refurbishment.
Key Technical Specifications
- Nominal Zener Voltage: 5.1V (The standard for 5V logic protection).
- Power Dissipation: 500mW (Standard DO-35 package).
- Tolerance: ±5% for consistent regulation.
- Package Type: Axial lead DO-35 glass package.
Versatile Applications in Retro Restoration
- Voltage Clamping: Preventing spikes in DIY expansion cards and peripherals.
- Reference Voltages: Creating stable references for analogue-to-digital converters.
Repairing Modulators: Found in various video output stages of 80s home consoles.
