MiSTer Analog IO Board v6.1

Description

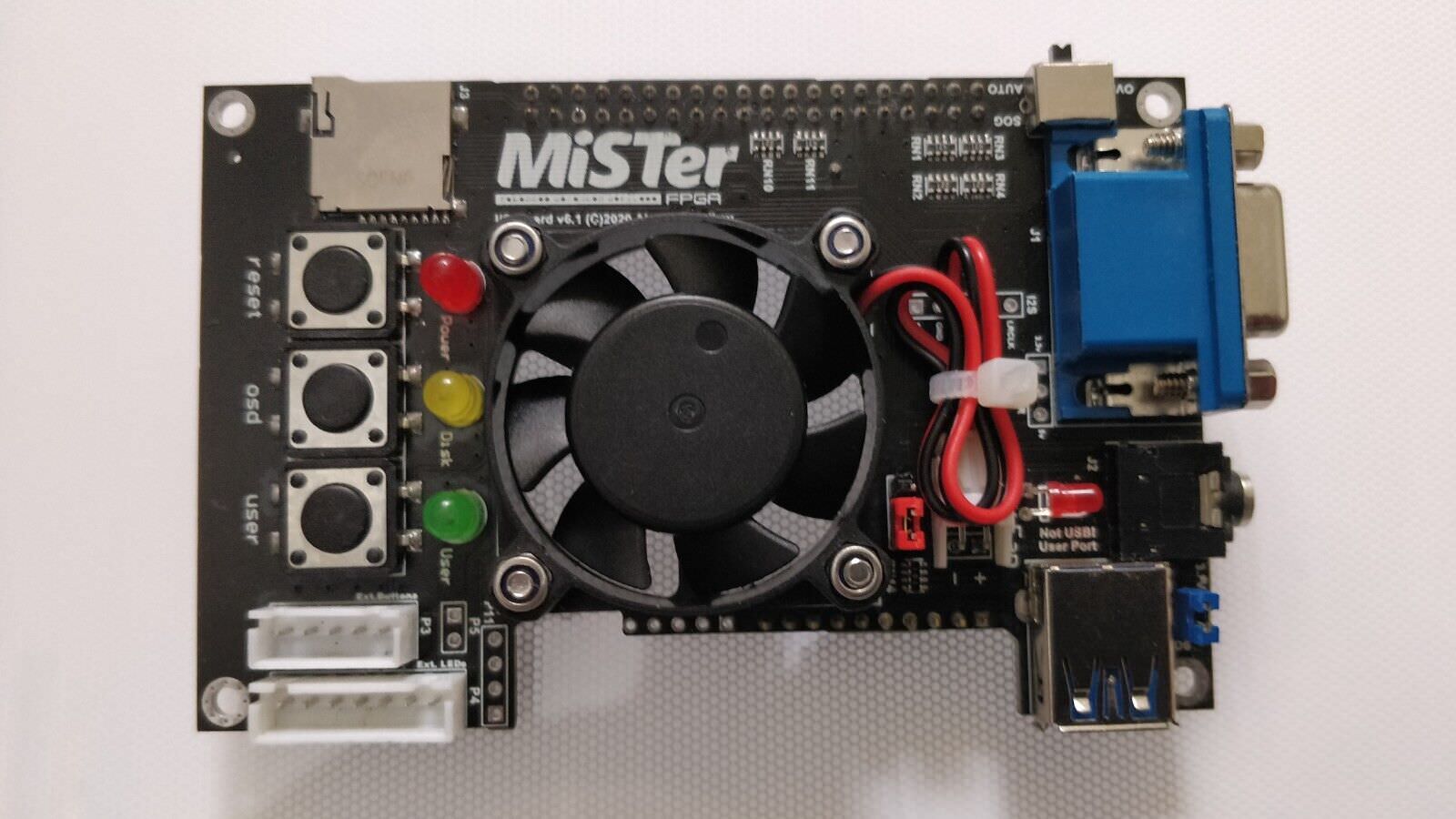

The MiSTer FPGA Analog io board v6.1 includes the following useful features a VGA (DB15) connector allowing for the output of a VGA/RGB /YPbPr signal depending on the cable being used, a 3.5mm audio jack with Mini-TOSLINK providing analog audio output and digital audio output, a secondary microD card slot the functionality depends upon the core being used, a fan speed control providing a 3.3 volt / 5 volt selector jumper, a status LED control jumper allowing switching on or off the built in LEDs, a Sync-on-Green switch, three status LEDs (red, yellow, green), three large push buttons providing system reset, on screen display menu and game reset, an expansion connector in the form of a USB 3.0 connector, however this is not for standard USB devices.

The MiSTer 1/0 Board v6.1 adds one additional GPIO pin to the User 10 port, providing support for the Sega Mega Drive / Genesis / Master System game pads using a SNAC board.

After assembley, each MiSTer Analog IO Board v6.1 is cleaned & tested on a DE10 setup. All of our IO boards use the highest quality branded components, like Samsung etc.

Configuration of the video output signal on the lO board is controlled via the MiSTer ini file, more information on downloading, and configuring the MiSTer.ini file see the MiSTer.ini configuration page.

For more information on analog video output compatibility see the MisTer wiki.

• Suitable For Terasic DE10-Nano FPGA Board
• Official Addon Board For The MiSTer FPGA Project
• Options for NO Fan, our Quality Silent Fan, or our Premium Noctua NF-A4x10 Fan
• VGA Connector (VGA / YPbPr / RGB) Video Output
• 3.5mm Audio Jack with Mini-TOSLINK
• 3 User Buttons & 3 Status LEDs
• Secondary MicroSD Slot
• User Expansion Connector
• 10 Switchable Sync-On-Green (SOG)
• Headers For External Push Buttons & LEDs
• As ALWAYS, each board is assembled, cleaned & then tested in a full DE10 MiSTer setup before being offered for sale.

ALL OUR MiSTer BOARDS COME WITH A LIFETIME WARRANTY!
