MiSTer FPGA USB Hub v2.1

The board provides 7 USB ports for the Terasic DE10-Nano FPGA Board, If you need to connect multiple USB devices this is a very useful add-on board – offering a neat minimalist connection solution via the provided Micro USB Bracket Connector which connects directly into the header installed on the USB hub board and then via the right angled gold plated micro USB connector into the DE10 Nano board. A power splitter cable is also included along with four brass hex stand-offs.

The updated official MiSTer FPGA USB Hub v2.1 add-on board has the new BUS control circuit installed, this additional protection IC is used for USB power cycling to help some USB devices reinitialise upon reset. Also present is an additional USB power only socket, this is marked PWR1 on the board and provides a powered only USB socket.

Features:

• Designed for the Terasic DE10-Nano FPGA Board
• Includes USB Hub Micro USB Bracket Connector
• FULLY assembled and tested individualy
• Brass Stand-offs & Power Splitter Lead included

Whats Included:

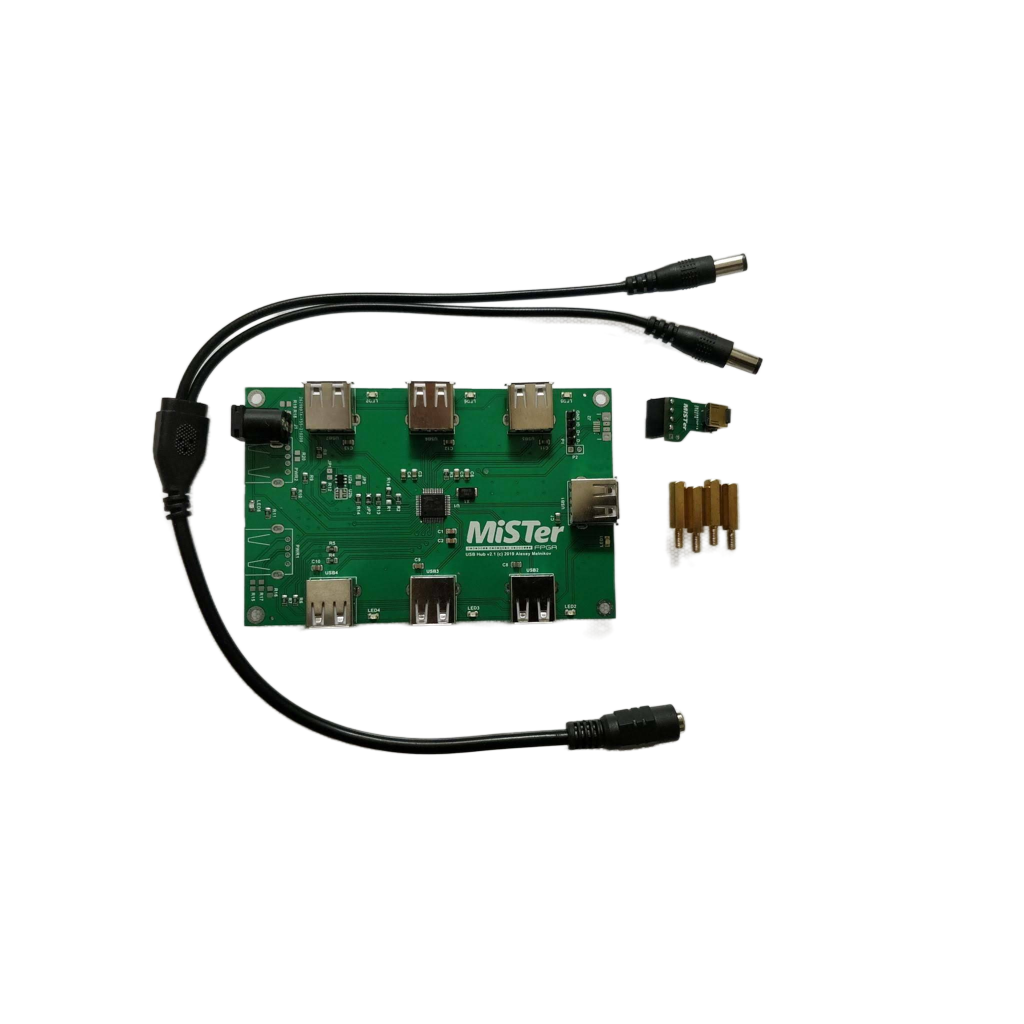

• 1 x USB Hub v2.1 For MiSTer
• 1 x DC Splitter Cable
• 1 x Micro USB Bracket Connector
• 4 x Brass standoffs

ALL OUR MiSTer BOARDS COME WITH A LIFETIME WARRANTY!
